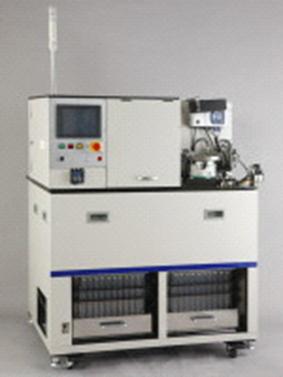

SUPER HIGH SPEED SORTING MACHINE

(FOR TOP VIEW LED)

(NCS-3200 Series)



NCS-3200 series is a machine that tests the luminance, color tone, and electrical characteristics of top view LED’s loaded from a parts feeder by side contact method and automatically sorts them into bins by their ranks

The processing capacity achieved at 0.15 secs per unit (24,000 units per hour).

This machine meets your requirements of high measurement accuracy and you can get a performance of stable measurement.



· Applicable Device = top view LED

· Loader = Parts Feeder

· No. of Test Station = 1

· Test Method = Top or Side Surface Contact

· Cycle Time (UPH) = max 0.15 secs/pc (including 90mSec Test Time) or 24,000 UPH

· No. of Bins = 128 bulk bins (NCS-3200IV)

                          = 256 bulk bins (NCS-3200V)

· Size = W1,165 x H1,850 x D800 (mm)
