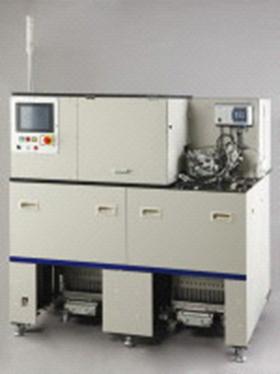

HIGH SPEED SORTING MACHINE (FOR SIDE VIEW LED)

(NCS-2200 Series)



NCS-2200 series is a machine that tests the luminance, color tone, and electrical characteristics of side view LED’s loaded from a parts feeder by bottom or side contact method and automatically sorts them into bins by their ranks

The processing capacity achieved at 0.25 secs per unit (14,400 units per hour).

This machine meets your requirements of high measurement accuracy and you can get a performance of stable measurement.



· Applicable Device = side view LED

· Loader = Parts Feeder

· No. of Test Station = 1

· Test Method = Bottom or Side Surface Contact

· Cycle Time (UPH) = max 0.25 secs/pc (including 100mSec Test Time) or 14,400 UPH

· No. of Bins = 128 bulk bins (NCS-2200IV)

                          = 256 bulk bins (NCS-2200V)

                          = 520 bulk bins (NCS-2200VI)

· Size = W1,170 x H800 x D1,860 (mm) —- NCS-2200IV & NCS2200V

  = W1,400 x H480 x D1,320 (mm) —- NCS-2200VI
